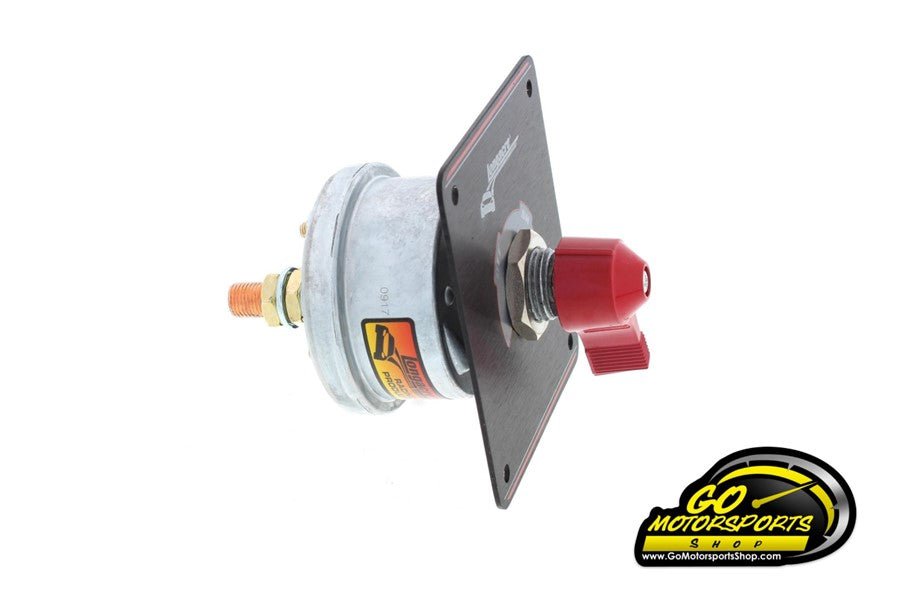

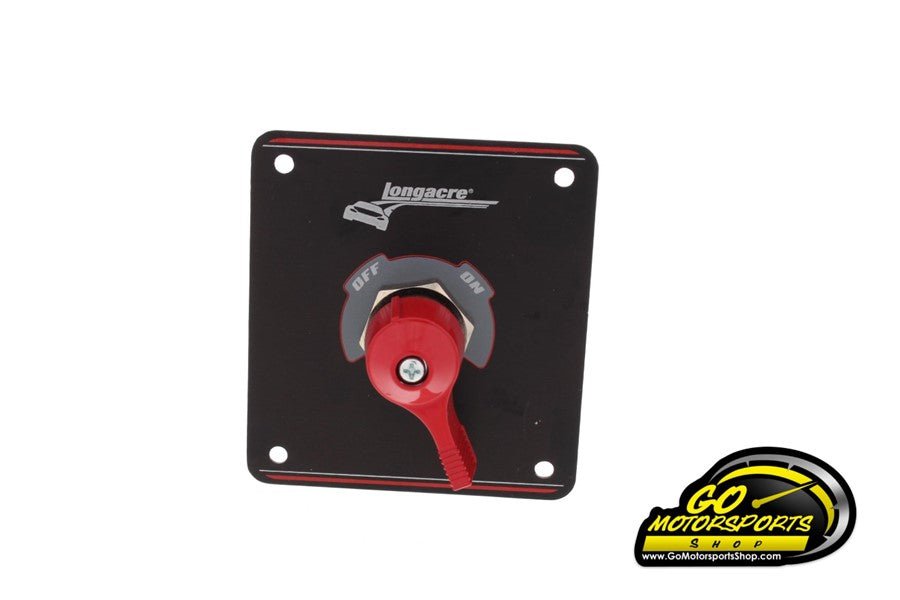

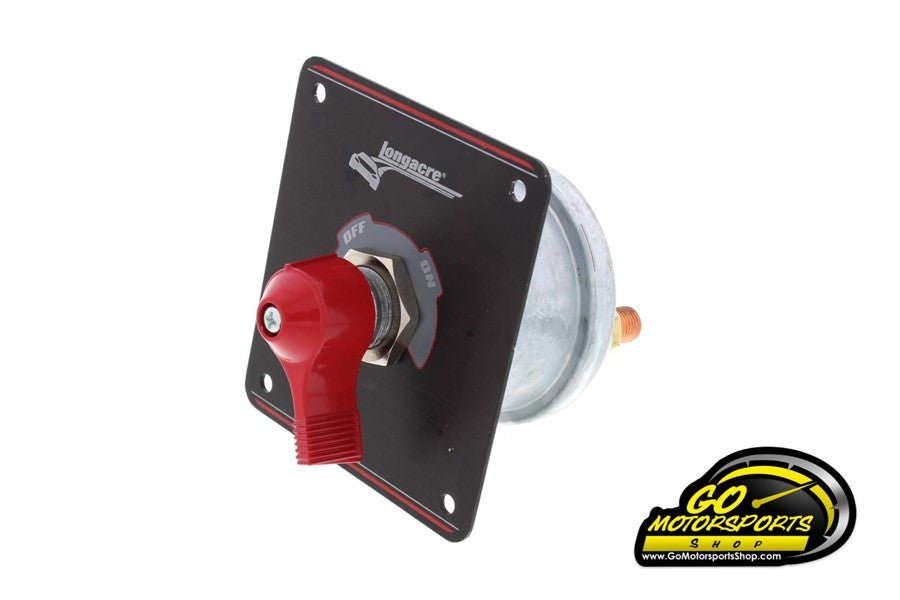

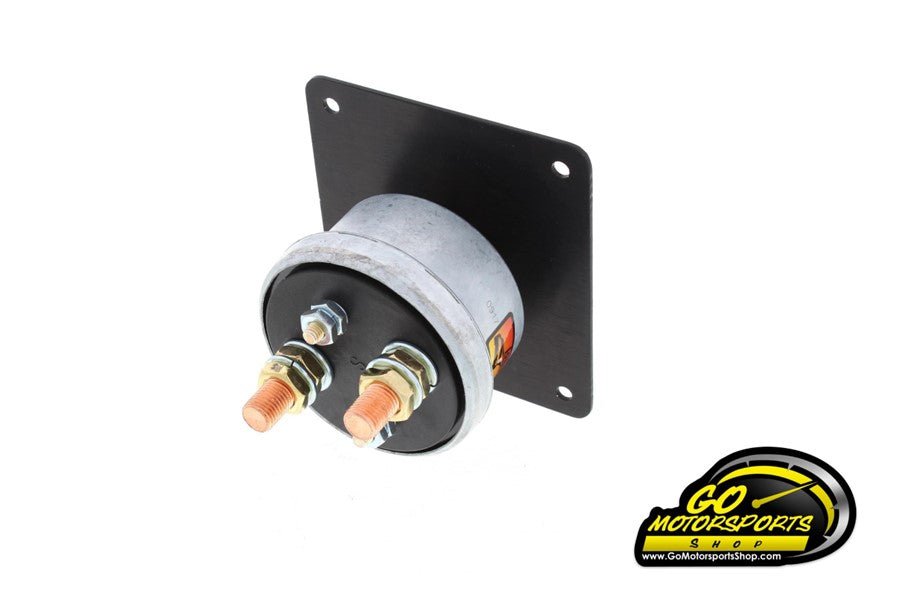

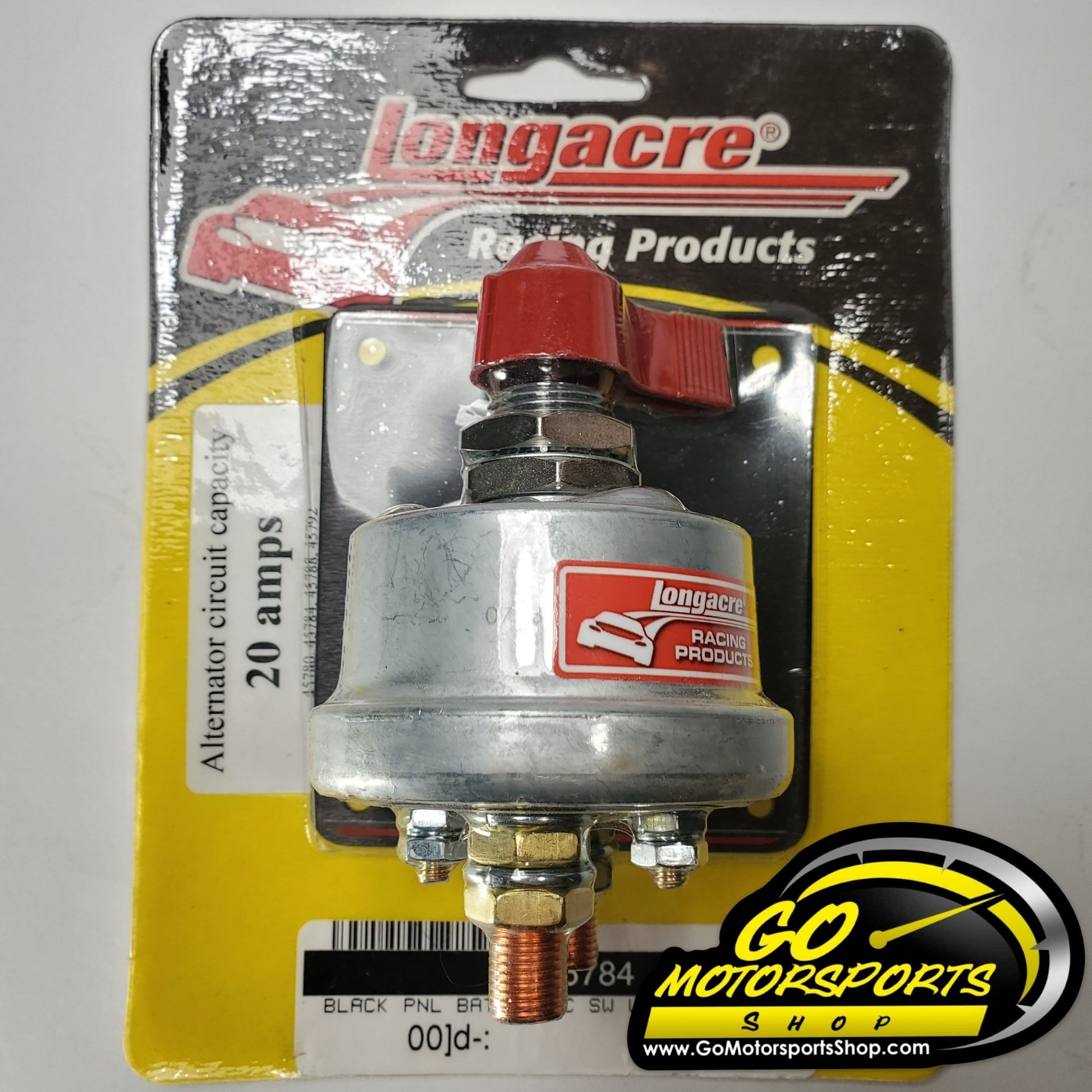

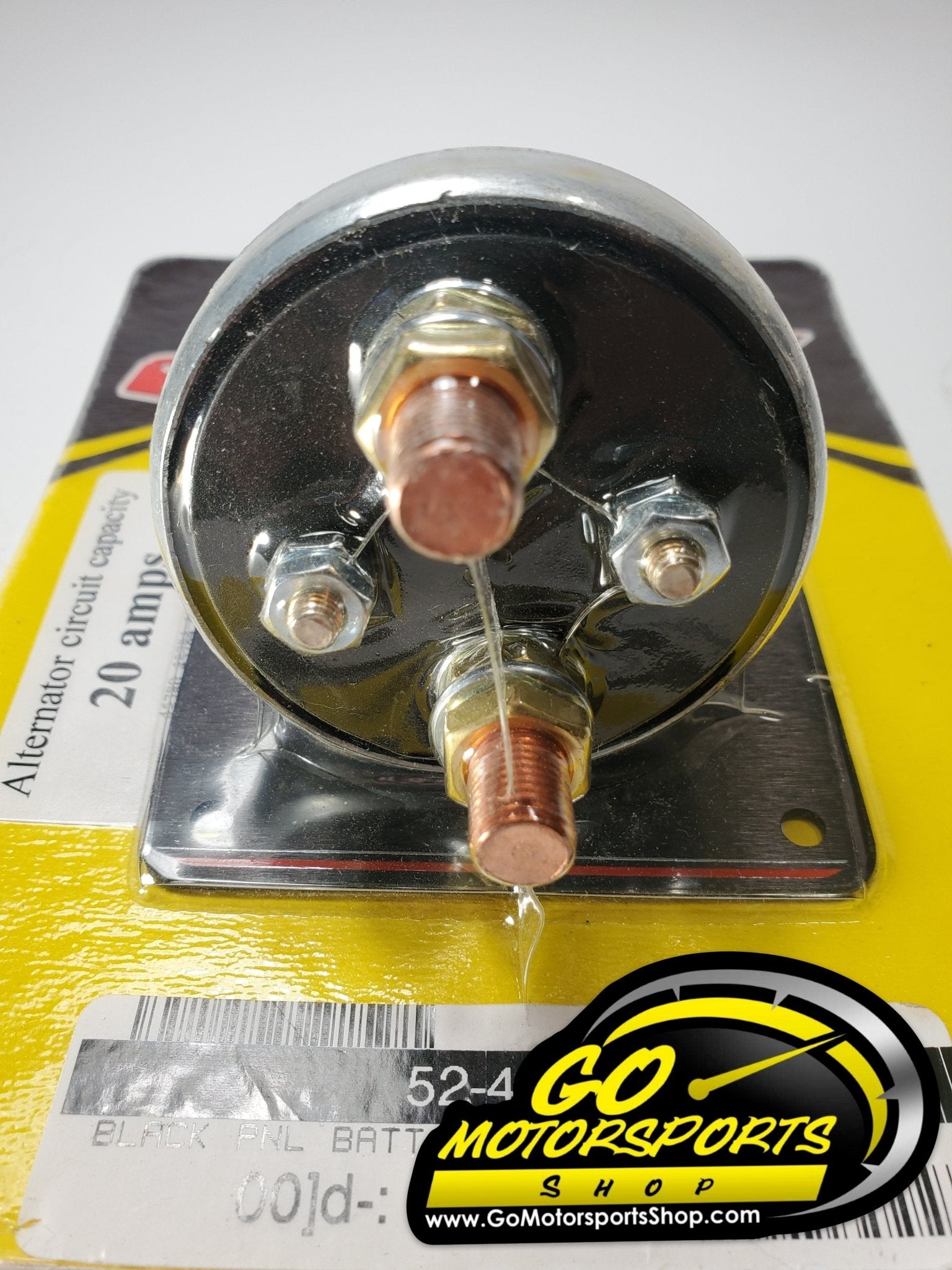

Longacre Battery Disconnect Panel Black 4 Post

  • $49.99


Longacre 52-45784

Battery Disconnect - Rotary Switch - 3-3/8 x 3-5/8 - 4 Terminal - 175 amp - 6-36V - Aluminum Panel

  • Manual battery disconnect switch with a bright red handle
  • Easier to find in an emergency
  • Prevents battery drain
  • 175 amp continuous rating, 6-36 volt, 1000 peak
  • Alternator circuit 20 amps
  • Great looking Aluminum Panel - black anodized with clean, modern graphics
  • May require drilling a 3/4" hole



Specifications

Switch
  Switch Activation: Manual
  Switch Actuation: Rotary
  Voltage Rating: 6-36 volts
  Continuous Amperage Rating: 175 amps
  Peak Amperage Rating: 1000 amps
  Alternator Disconnect Included: Yes
  Alternator Amperage Rating: 20 amps
  Weatherproof: No
  Mounting Panel Included: Yes
  Mounting Hole Size: 0.730"
  Body Diameter (At largest point): 2.647"
  Body Depth (From end of threads to lock washer): 2.980"
  Overall Depth: 4.216"
  Stud Size: 3/8"
Panel
  Material: Lightweight aluminum
  Finish: Black anodized
  Dimensions: 3 3/8" x 3 5/8"
  Fits Longacre Panel Bracket: No
